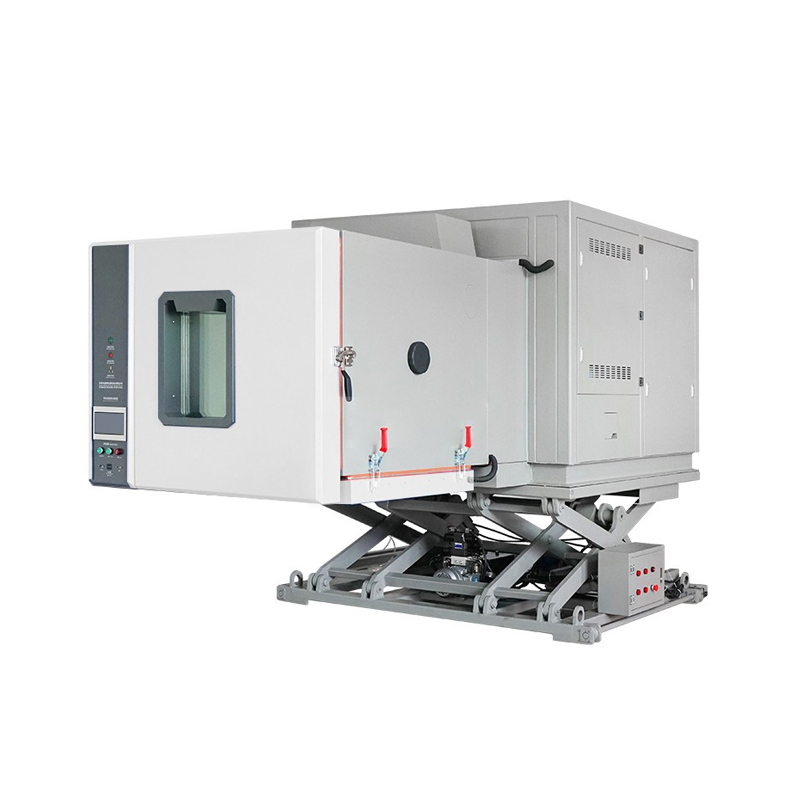

This Temperature Humidity Vibration Chamber integrates temperature, humidity, and vibration environments to simulate the complex environmental conditions that products may encounter during transportation, storage, and use.
商品编号 :
GT-F70订单（最小起订量） :
1
This Rapid Thermal Shock Three-Combined Environmental Test Chamber is widely used in aerospace, automotive manufacturing (especially new energy vehicles), electronics and communications, rail transportation, new energy, semiconductors, scientific research and education, and military industries for verifying the environmental adaptability and reliability of complete machines, components, electrical appliances, instruments, and materials, as well as for defect screening.
This test equipment is prohibited for testing and storage of the following items:
1. Flammable, explosive and highly volatile substances;
2. Corrosive substances;
3. Biological samples;
4. Specimens with strong electromagnetic emission sources
GB/T5170.2-2008 Test Equipment for Temperature
GB/T2423.1-2008(IEC60068-2-1:2007) Low temperature test Ab
GB/T2423.2-2008(IEC60068-2-2:2007) High temperature test Bb
GB/T5170.5-2008 Test Equipment for Damp Heat
GB/T2423.3-2006(IEC60068-2-78:2007) Constant damp heat test Cab
GB/T2423.4-2008(IEC68-2—30)Cyclic damp heat test Db
GJB150.3-2009 High temperature test
GJB150.4-2009 Low temperature test
GJB150.9A-2009 Damp heat test
（Remark: Volumetric thermal capacity load ≤80kg/m³ steel, no active heat load.）
|
Capacity |
1000L |
|
Internal Chamber Dimensions |
1000 × 1000 × 1000 mm (W×D×H) |
|
External Chamber Dimensions |
2000 × 1450 × 3260 mm (W×D×H, protruding parts excluded) |
|
Equipment Weight |
Approx. 1,900 kg |
|
Equipment conditions |
Temperature: 5～35℃ Relative Humidity ≤85%RH Air Pressure 86～106 kPa (No specimen inside the chamber ) |
|
Testing Temperature Range |
-40℃～+150℃ |
|
Temperature Fluctuation Tolerance |
≤±0.5℃ |
|
Temperature Deviation |
≤±2.0℃ |
|
Temperature Uniformity |
≤2.0℃ |
|
Temperature Rise Rate |
-40℃ → +70℃: Average full-range rate ≥3℃/min (loaded with 5kg aluminum ingot, no heat source) |
|
Temperature Drop Rate |
+70℃ → -40℃: Average full-range rate ≥1℃/min (loaded with 5kg aluminum ingot, no heat source) |
|
Humidity Control Range |
20～98%RH (Refer to the temperature & humidity controllable range diagram, no active thermal load) |
|
Relative Humidity Deviation |
≤±3%RH when RH＞75%RH (empty chamber, constant state) ≤±5%RH when RH≤75%RH (empty chamber, constant state) |
用于可靠材料和电子可靠性测试的高精度气候模拟 -该恒温恒湿箱具有可编程控制、宽广的温度和湿度范围，并符合国际标准。 主要特点：✔ 测试范围广：温度：-60°C 至 +150°C | 湿度：20% 至 98% RH。✔ 智能控制：7英寸可编程彩色触摸屏控制器，带USB数据导出功能。✔ 优质组件：配备进口法国泰康塞压缩机。✔ 国际标准：完全符合 ISO、ASTM、IEC、JIS、BS 标准。
台式温湿度试验箱 它通过稳定的温湿度设置，实现精确的环境控制，用于测试前样品的预处理。其紧凑的体积使其可以轻松放置在支架或工作台上，非常适合空间有限的实验室和测试区域——而且丝毫不影响其制造质量或测试性能。
热冲击试验箱 该设备由两个独立的隔间组成。热冲击试验机或被测材料放置在试验篮或托盘中，然后在冷热试验室之间快速转移。转移过程迅速，确保温度快速变化，从而模拟实际工况。这使得制造商能够评估温差对产品完整性、性能和可靠性的影响。
高低温试验箱 这些设备专为模拟极端高低温环境而设计，能够评估材料和组件在长时间暴露于这些环境后的耐久性、功能性和性能。是电子、航空航天和工业应用中材料耐久性测试的理想之选。
步入式环境试验室适用于测试仪器材料、电工、电子产品、家用电器、汽车零部件、化学涂料、各种电子元件及其他相关产品的零部件在高温和低温环境下的储存和运输。采用适应性测试来评价其性能指标。
盐雾试验箱 对于评估金属、涂层和其他材料的耐腐蚀性至关重要——确保产品符合严格的耐腐蚀性标准，并提高其在实际应用中的可靠性。
